Broadband Technical Help

TIME - ZTE Router

TIME - ZTE Router

TIME - Router ZTE

You may proceed with the following troubleshooting steps and it shouldn’t take you much longer than 15 minutes.

1. Please standby computer/laptop to access to the internet and connection must be via LAN cable Cconnect the LAN cable to the yellow port in ZTE Router and direct to computer/laptop).

2. You may open any web browser such as Google Chrome, Internet Explorer, Mozilla Firefox and etc.

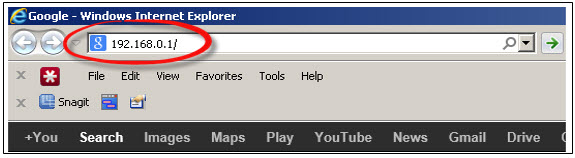

3. On the address bar, please go to http://192.168.0.1 and below page will appear.

4. Type the Username and Password as below. Then click Login. (These are the defaults, if you have done previous configuration on your router the password may be different).

Username: admin

Password: admin (or time123)

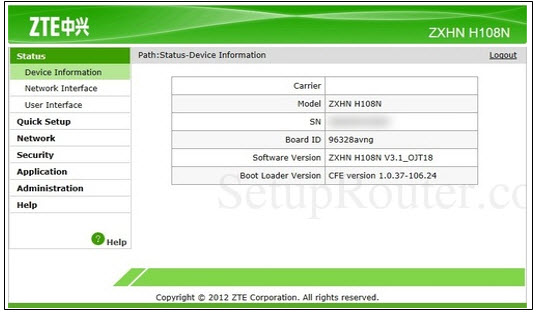

5. The router's web-based setup page should now appear. Please follow below steps for the configuration.

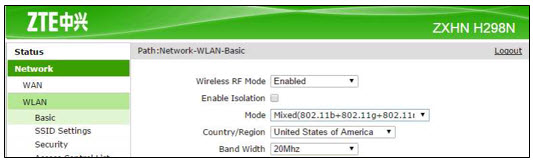

6. On the setup page, click the Network tab then click on the WLAN then choose Basic sub-tab.

7. Please ensure Wireless RF Mode is Enabled.

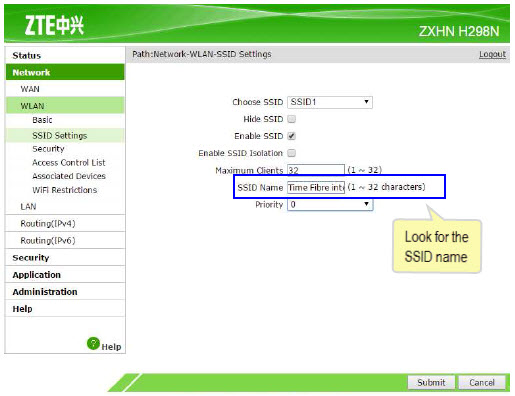

8. From the left menu, click Network>WLAN>SSID Settings.

Look for the SSID Name for your wireless network ID.

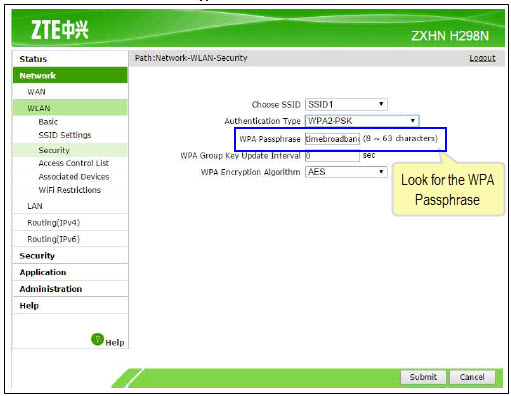

9. From the left menu, click Network>WLAN>Security.

Look for the WPA Passphrase for your wireless password.

Please ensure Authentication Type is set to WPA2-PSK.

10. Now that you have the Router name and Password, you are ready to connect your wireless computers and devices to the network.

11. You may change the Network Name (SSID) and the Passphrase to follow your preferences and  please ensure save the changes made. Please reconnect to the new wireless name with the new password once completed.

‍

‍

"Anda boleh meneruskan langkah penyelesaian masalah berikut dan ia tidak sepatutnya mengambil masa lebih lama daripada 15 minit.

1. Sila sediakan komputer/komputer riba untuk mengakses internet dan sambungan mestilah melalui kabel LAN . Sambungkan kabel LAN ke port kuning pada router ZTE dan terus ke komputer/komputer riba).

2. Anda boleh membuka mana-mana pelayar sesawang seperti Google Chrome, Internet Explorer, Mozilla Firefox dan lain-lain.

3. Pada bar alamat, taipkan http://192.168.0.1 dan halaman di bawah akan muncul.

‍

4. Taipkan nama pengguna (username) dan Kata laluan (password) seperti di bawah. Kemudian klik Log Masuk. (Secara umumnya, jika anda telah melakukan konfigurasi sebelumnya pada router anda, Kata laluan (password) mungkin berbeza).

Nama pengguna (username): admin

Kata laluan (password): admin (atau time123)

‍

5. Halaman persediaan berasaskan web router kini sepatutnya muncul. Sila ikuti langkah di bawah untuk konfigurasi.

6. Pada halaman persediaan, klik tab Rangkaian (Network) kemudian klik pada WLAN kemudian pilih sub-tab Asas (Basic).

77. Sila pastikan Mod RF Wayarles Didayakan (enabled).

8. Dari menu kiri, klik Rangkaian>WLAN>Tetapan SSID.

Cari Nama SSID untuk ID rangkaian wayarles anda.

9. Dari menu kiri, klik Rangkaian>WLAN>Keselamatan.

Cari Frasa Laluan WPA untuk Kata laluan (password) wayarles anda.

Sila pastikan Jenis Pengesahan ditetapkan kepada WPA2-PSK.

10. Sekarang setelah anda mempunyai nama Router dan Kata laluan (password), anda sudah bersedia untuk menyambungkan komputer dan peranti wayarles anda ke rangkaian.

11. Anda boleh menukar Nama Rangkaian (SSID) dan Frasa Laluan untuk mengikut keutamaan anda dan sila pastikan menyimpan perubahan yang dibuat. Sila sambung semula ke nama wayarles baharu dengan Kata laluan (password) baharu setelah selesai.

‍

‍

‍
