<p id="" style="margin-top: 16px; margin-bottom: 16px">You may proceed with below troubleshooting and it shouldn&#39;t take you any longer than 15 minutes.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">1. Please standby computer/laptop to access to the internet and connection must be via LAN (cable) [Connect the LAN (cable) to the blue port at Cisco Router and direct to computer/laptop].</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">2. You may open any web browser such as Google Chrome, Internet Explorer, Mozilla Firefox and etc.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">3. On the address bar, please go to <a href="http://192.168.1.1" id="" style="color: #ec008c; text-decoration: underline;"><strong id="">http://192.168.1.1</strong> </a>and below page will appear.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/114_6018f4073b0d58d5a8606ecd_5fc0b763312403d16d4b089e_c.jpeg" width="auto" /></div>
</figure>

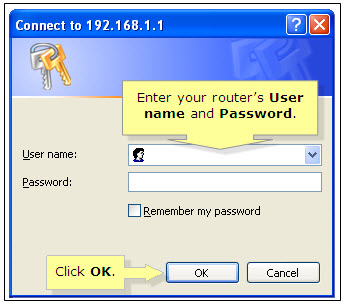

<p id="" style="margin-top: 16px; margin-bottom: 16px">4. Type the <strong id="">Username</strong> and <strong id="">Password</strong> as below. Then click <strong id="">OK</strong>. (These are the defaults, if you have done previous&nbsp;configuration on your router the password may be different).<br />
&nbsp;</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px"><strong>Username: admin</strong></p>

<p id="" style="margin-top: 16px; margin-bottom: 16px"><strong>Password: admin (or time123)</strong><br />
&nbsp;</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/116_6018f407bcd94fd004925064_5fc0b763312403687b4b08a0_d.jpeg" width="auto" /></div>
</figure>

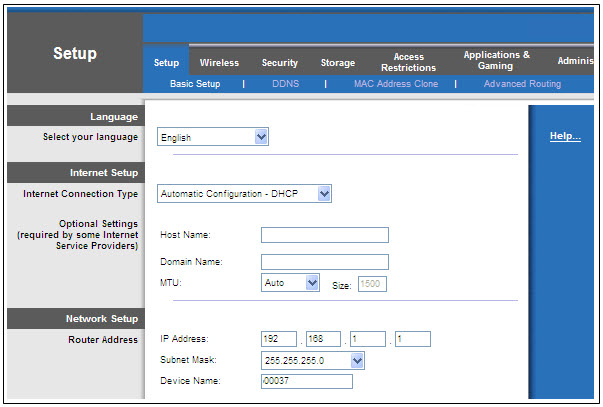

<p id="" style="margin-top: 16px; margin-bottom: 16px">5. The router&#39;s web-based setup page should now appear. Please follow below steps for the configuration.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/117_6018f4073ef6950834eafb2d_5fc0b76331240367f54b08fe_e.jpeg" width="auto" /></div>
</figure>

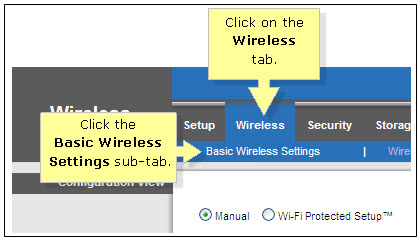

<p id="" style="margin-top: 16px; margin-bottom: 16px">i. On the setup page, click the Wireless tab then click on the Basic Wireless Settings sub-tab.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/11d_6018f407a278dd51fda83ea2_5fc0b76331240349564b08db_f.jpeg" width="auto" /></div>
</figure>

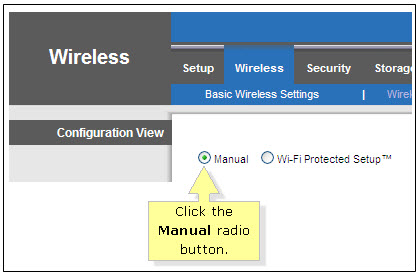

<p id="" style="margin-top: 16px; margin-bottom: 16px">ii. On the Configuration View section, click the Manual radio button. Choosing the Manual setup will allow you to adjust your wireless channel according to your preference.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/11c_6018f407b0ecad22fc6823a2_5fc0b76331240316d74b08e3_g.jpeg" width="auto" /></div>
</figure>

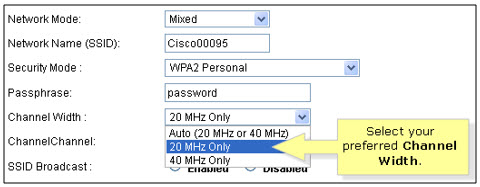

<p id="" style="margin-top: 16px; margin-bottom: 16px">iii. Leave the Channel Width set to 20MHz Only.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/11e_6018f407a8a9e054895056e1_5fc0b763312403471a4b08dc_h.jpeg" width="auto" /></div>
</figure>

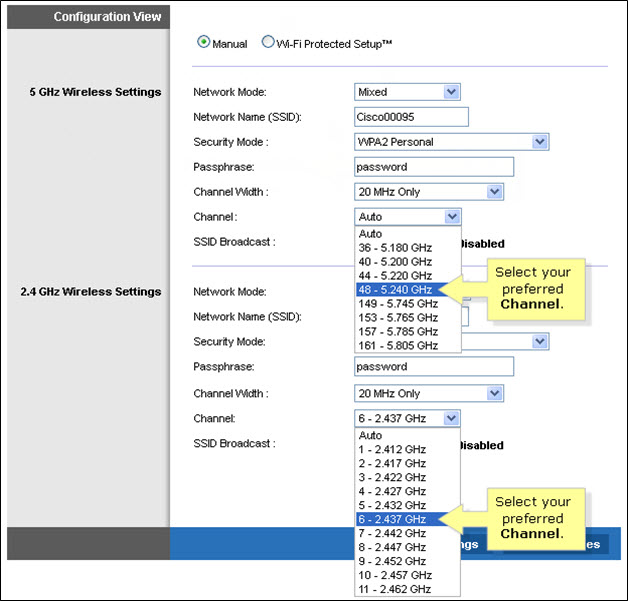

<p id="" style="margin-top: 16px; margin-bottom: 16px">iv. Click the drop-down arrow for Channel, then select your desired&nbsp;channel.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">Choose between 1 until 11 (Suggested 1,6,11).</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/11f_6018f40719cb53668eae4cce_5fc0b763312403234b4b0908_i.jpeg" width="auto" /></div>
</figure>

<p id="" style="margin-top: 16px; margin-bottom: 16px">v. Click Save Settings to apply your changes. Router will auto&nbsp;reboot and connection re-establish after few minutes.</p>
