<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/0115_6018f407d9c89f6188fd67f0_5fc0b7633124030cb14b082b_a.png" width="auto" /></div>
</figure>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/0113_6018f407c4901058b82616d9_5fc0b76331240351064b0826_b.png" width="auto" /></div>
</figure>

<p id="" style="margin-top: 16px; margin-bottom: 16px">You may proceed with the following troubleshooting steps and it shouldn&rsquo;t take you much longer than 15 minutes.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">1. Please standby computer/laptop to access to the internet and connection must be via LAN cable (connect the LAN cable to the blue port in Cisco Router and direct to computer/laptop).</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">2. You may open any web browser such as Google Chrome, Internet Explorer, Mozilla Firefox and etc.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">3. On the address bar, please go to <a href="http://192.168.1.1" id="" style="color: #ec008c; text-decoration: underline;"><strong id="">http://192.168.1.1</strong></a><strong id=""> </strong>and below page will appear.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">&zwj;</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/975e_6018f55331a684fe6e20454c_5fc0b7633124036c634b0832_c.png" width="auto" /></div>
</figure>

<p id="" style="margin-top: 16px; margin-bottom: 16px">&zwj;</p>

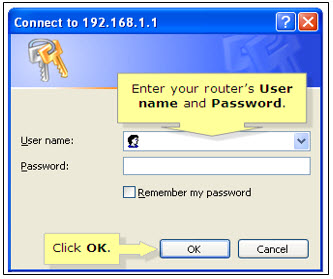

<p id="" style="margin-top: 16px; margin-bottom: 16px">4. Type the <strong id="">Username</strong> and <strong id="">Password</strong> as below. Then click &quot;<strong id="">OK</strong>&quot;. (These are the defaults, if you have done previous configuration on your router the password may be different).</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px"><strong>Username: admin</strong></p>

<p id="" style="margin-top: 16px; margin-bottom: 16px"><strong>Password: admin (or time123)</strong></p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/75c_6018f5533ef6950d23eaffe6_5fc0b76331240345364b0838_d.jpeg" width="auto" /></div>
</figure>

<p id="" style="margin-top: 16px; margin-bottom: 16px">5. Click &quot;<strong id="">OK</strong>&quot; when a Warning prompt that says,&rdquo; Using this advanced utility to change your router settings could disable your network&rdquo; appears. Below display will appears.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/75d_6018f5533ef695bd60eaffe7_5fc0b763312403828a4b0843_e.jpeg" width="auto" /></div>
</figure>

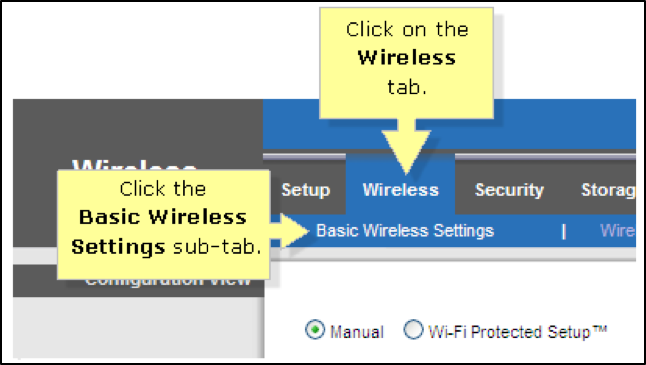

<p id="" style="margin-top: 16px; margin-bottom: 16px">6. On the setup page, click the <strong id="">Wireless</strong> tab then click on the <strong id="">Basic Wireless Settings</strong> sub-tab.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/9761_6018f553c4901053e4261aa6_5fc0b763312403ab4d4b0851_f.png" width="auto" /></div>
</figure>

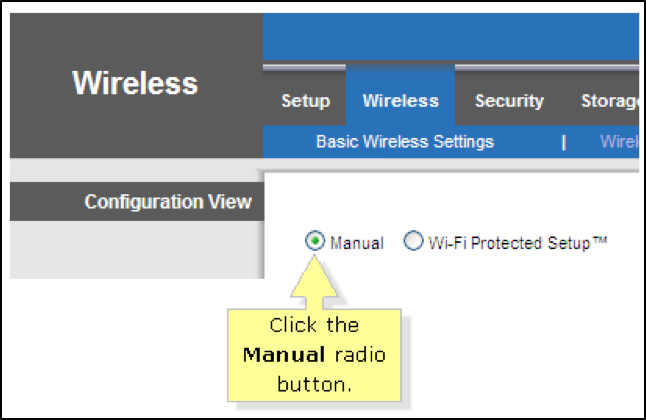

<p id="" style="margin-top: 16px; margin-bottom: 16px">7. On the <strong id="">Configuration View</strong> section, click the <strong id="">Manual</strong> radio button. Choosing the Manual setup will allow you to adjust your wireless channel according to your preference.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/9763_6018f55407f3792d898bcffe_5fc0b76331240379484b0857_g.png" width="auto" /></div>
</figure>

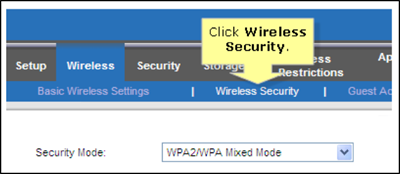

<p id="" style="margin-top: 16px; margin-bottom: 16px">8. Click <strong id="">Wireless Security</strong> to view the security settings of your wireless network. Take note of the <strong id="">Security Mode</strong> and the <strong id="">Passphrase</strong>.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/975f_6018f5550e113c4bb64bc692_5fc0b76331240344b94b083f_h.png" width="auto" /></div>
</figure>

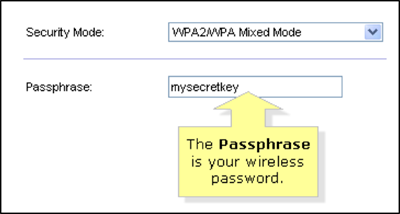

<p id="" style="margin-top: 16px; margin-bottom: 16px">For the example below, the Security Mode used is WPA2/WPA Mixed Mode.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">The Wireless name is called <strong id="">Network Name (SSID)</strong> and the <strong id="">Passphrase</strong> is your wireless password.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/9762_6018f55479563eff315372ea_5fc0b76331240343524b0830_i.png" width="auto" /></div>
</figure>

<p id="" style="margin-top: 16px; margin-bottom: 16px">&zwj;</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">9. Now that you have the Wireless name and Password, you are ready to connect your wireless computers and devices to the network.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">10. You may change the Network Name (SSID) and the Passphrase to follow your preferences and please ensure save the changes made. Please reconnect to the new wireless name with the new password once completed.</p>

<p id="" style="margin-top: 16px; margin-bottom: 16px">&zwj;</p>
