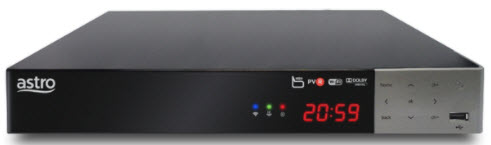

Byond Box (DMT 5)

STEP 1

Switch on the power for your box and make sure that the adapter’s power light is on.

STEP 2

Put the box on standby mode.

STEP 3

Press and hold the Home button on the box.

STEP 4

Wait until “boot” appear on the front panel and released.

STEP 5

New Installation Settings page will appear.

Click here for the guides to complete the setup.

‍

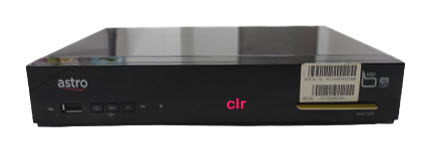

Byond Box (DMT 4)

STEP 1

Switch off the power of your box and ensure the adapter’s power light is off.

STEP 2

Switch on the power of your box and ensure the adapter’s power light is on.

STEP 3

Press and hold the Ch+ and Ch- keys on the box simultaneously when the "boot" message appears on the front panel.

STEP 4

Wait until the "Clr" message appears on the front panel, then release the Ch+ and Ch- keys.

STEP 5

New Installation Settings page will appear.

Click here for the guides to complete the setup.

‍

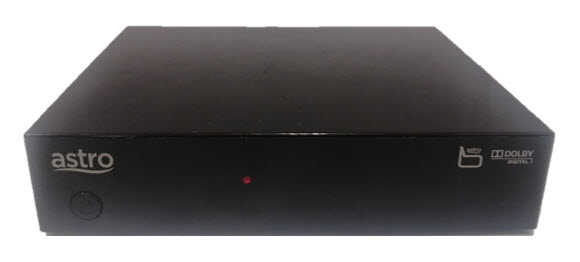

Byond Box (Zapper)

STEP 1

Ensure your box is on standby mode. (Red light on box's front panel).

STEP 2

Press and hold the Standby button. Wait until the LED at front panel change from red to green for 3 times, then release the button.

STEP 3

New Installation Settings page will appear.

Click here for the guides to complete the setup.

‍

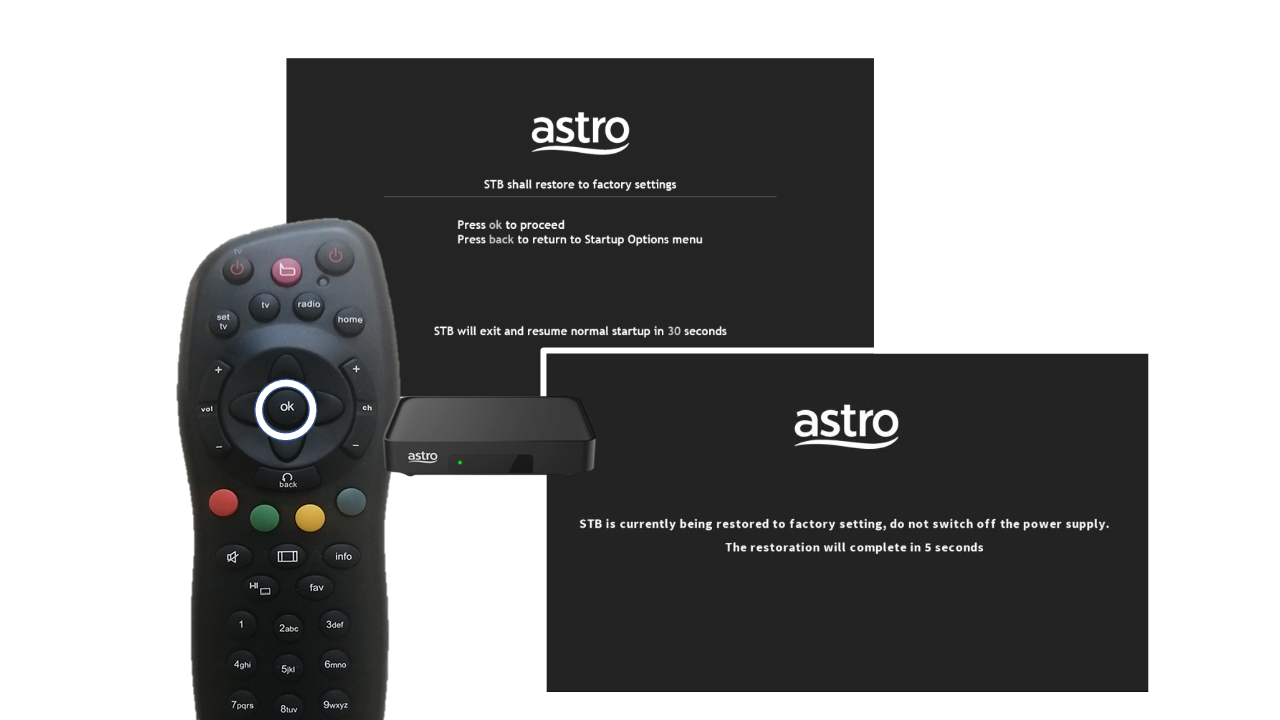

Byond Box (New Zapper)

STEP 1

Switch off the power of your box and ensure that the adapter’s power light is off.

STEP 2

Switch on the power of your box and ensure that the adapter’s power light is on.

STEP 3

Keep pressing the 'Power' button until the Startup Option screen appears.

STEP 4

Press “369” on the remote control to trigger refresh box setting menu.

STEP 5

Press “OK” to proceed. The box will be refreshed to the original setting.

STEP 6

New Installation Settings page will appear.

Click here for the guides to complete the setup.
