1. Please standby computer/laptop to access to the internet and connection must be via LAN (cable) [Connect the LAN (cable) to the yellow port in Maxis Router and direct to computer/laptop].
2. You may open any web browser such as Google Chrome, Internet Explorer, Mozilla Firefox and etc.
3. On the address bar, please go to http://192.168.1.254 and below page will appear.
If below box appear, please enter required details:
USERNAME: Administrator
PASSWORD: (ACCESS KEY AT THE RGW STICKER)
(These are the defaults, if you have done previous configuration on your router the password may be different)

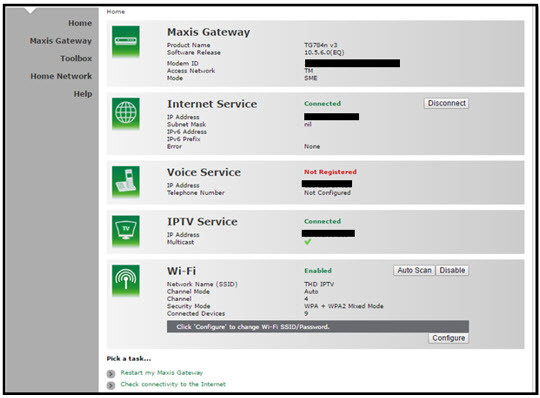

4. Once enter into the page ‘’TECHNICOLOR TG784N V3’’, you may follow below steps to get the best wireless channel information.
A. Select "Home Network".
B. Click "WLAN: SSID" to proceed to next screen.

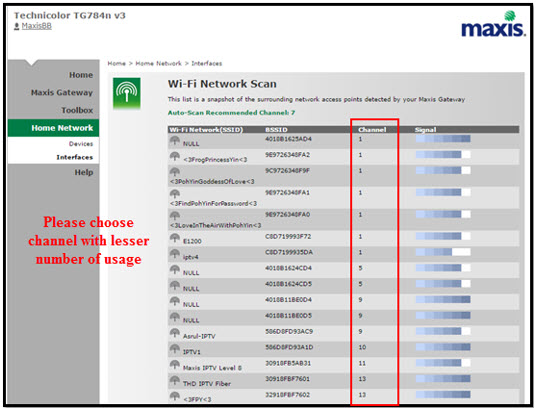

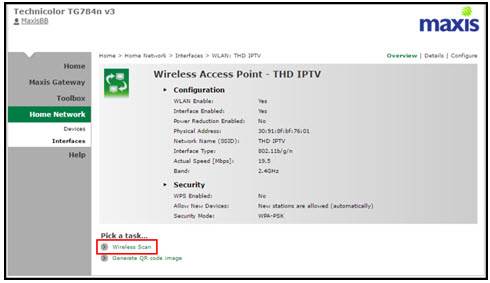

C. In order to get the best wireless channel, click "Wireless Scan" to scan available surroundings wireless Channel.
D. Please choose channel with lesser number of usage.
Example in below case, you may choose channel 4.
5. To configure wireless channel, please proceed with below steps.
A. Select "Home Network".
B. Click "WLAN: SSID" to proceed to next screen.

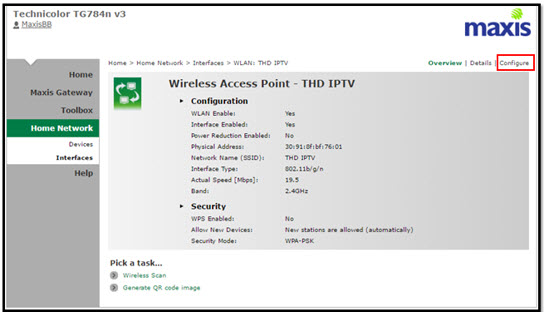

C. Then, click "Configure" to change the channel selection (automatic to manual) and other configuration option.

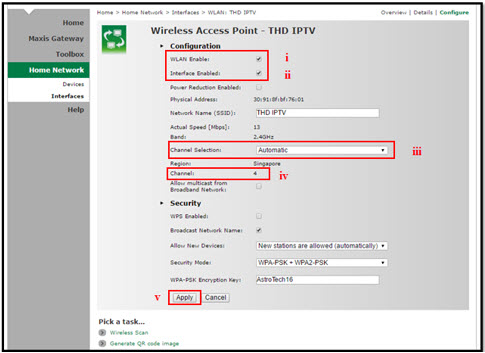

D. Please ensure below items:
i. WLAN Enable: Tick
ii. Interface Enable: Tick
iii. Change the Channel Selection to Manual
iv. Change the wireless Channel based on Step 4(D).
v. Once completed the selection, click the "Apply" button.
Router will auto reboot and connection re-establish after few minutes.
