<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/8e_623457985b2dc94b6fad406f_microsoftteams-image-2520(3).png" width="auto" /></div>

<figcaption id=""><strong id="">Huawei K562e</strong></figcaption>
</figure>

<p id="">By default, the band steering featured is disabled. Follow these steps to enable it.</p>

<p id=""><br />
Note: Band Steering is called <strong id="">Dual-band Combination</strong> in the router web interface.</p>

<p id="">&nbsp;</p>

<ol>
	<li>Please connect your computer or laptop to your Astro Fibre router using LAN cable. Your LAN cable must be connected from the yellow port of Astro Fibre router (Any available port).</li>
	<li>Once connected, open any web browser such as Google Chrome, Internet Explorer, Mozilla Firefox and etc.</li>
	<li>On the address bar, type <a href="http://192.168.100.254/" id="" style="color: #ec008c; text-decoration: underline;"><strong id="">http://192.168.100.254</strong> </a>and below page will appear.</li>
</ol>
&nbsp;

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/623a7e25812b507029f242e2_62341100065ff57be94bd0ca_b.png" width="auto" /></div>
</figure>

<p id="">Login using your username and password if you have changed the router login setting. Otherwise, your default router login is as per below.</p>

<p id=""><strong>Username: user<br />
Password: user</strong><br />
<br />
&nbsp;</p>

<p id="">4. Once you have successfully logged in, the router&#39;s web-based setup page will appear.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/623a7e253615d482065711e8_623411ef3bd2193846aa0756_c.png" width="auto" /></div>
</figure>

<p id=""><br />
<br />
5. At the top of the page, click<strong id=""> Wi-Fi </strong>to configure the WiFi parameters.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/623a7e263615d40e6357135d_623412032a8616aab00ada4f_d.png" width="auto" /></div>
</figure>

<p id=""><br />
<br />

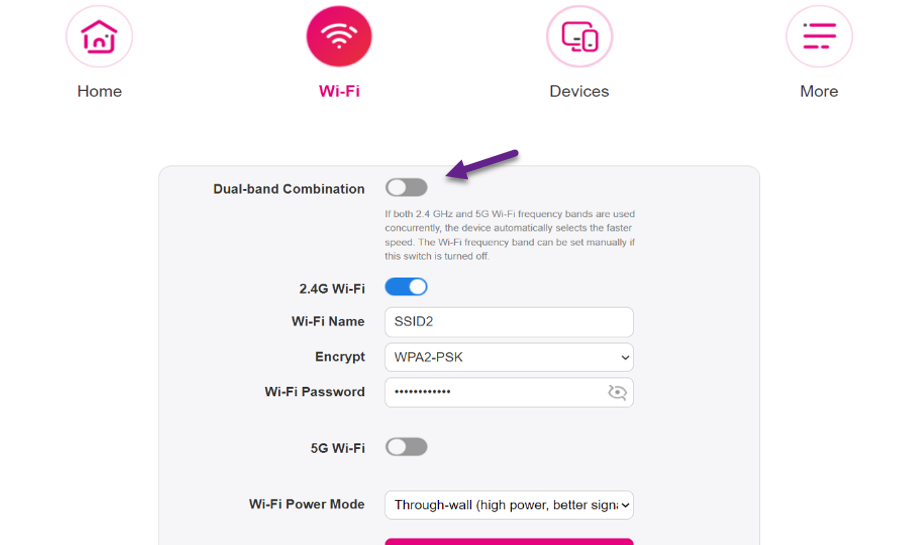

6. Click on <strong id="">Dual-band Combination</strong> button to enable the Band Steering.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/82ab_62ce40e8c55dc4de69dfbd5b_623a8c0c26375bffcbe9a2c9_e.png" width="auto" /></div>
</figure>

<p id=""><br />
<br />

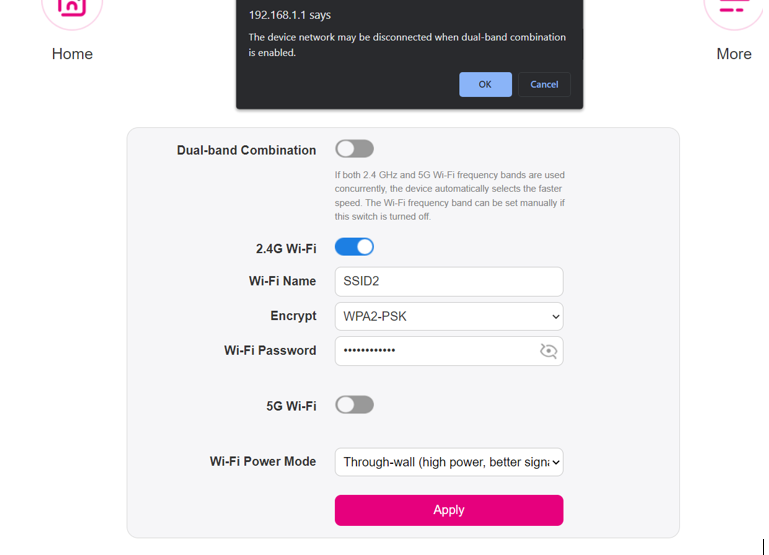

7. A pop-up message will appear showing &quot;<em id="">The device network may be disconnected when dual-band combination is enabled&quot;.&nbsp;</em>Click <strong id="">&quot;OK&quot;</strong> to proceed.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/623a8a1418b9425d69a36ee6_623414fb3fab6480cf4c137a_f.png" width="auto" /></div>
</figure>

<p id=""><br />
<br />

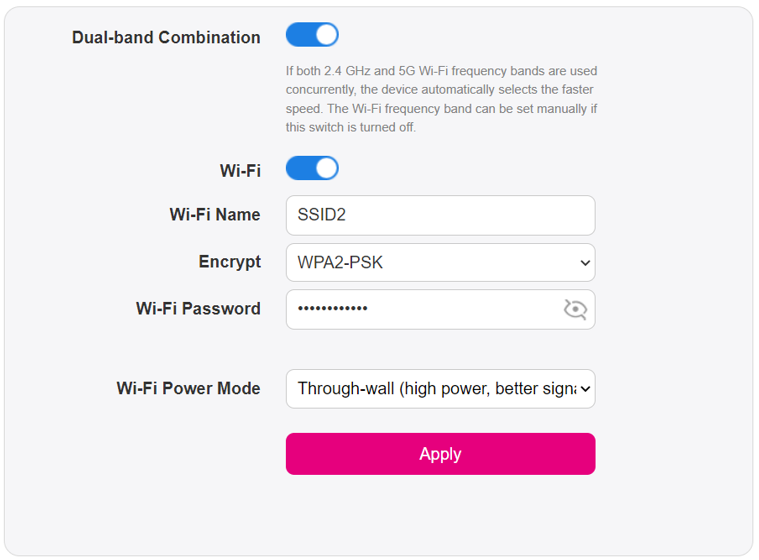

8. Set the Wi-Fi name and Wi-Fi password based on customer&#39;s preferences. Then click <strong id="">&quot;Apply&quot;</strong> for the changes to take place.</p>

<p id="">Please reconnect to the new Wi-Fi name with the new password once completed.</p>

<figure class="w-richtext-figure-type-image w-richtext-align-center" data-rt-align="center" data-rt-type="image" id="">
<div id=""><img height="auto" id="" loading="auto" src="https://dj7fdt04hl8tv.cloudfront.net/acm/media/acm-help-support/623a8a130025714a460173fc_6234152357bd6b9e87605231_g.png" width="auto" /></div>
</figure>

<p id="">&nbsp;</p>
